Product Detail

MCB 80-125a

Detail
Product name DC 125A MCB Rated current 80-125a
Rated voltage 12V~1200V DC Pole 1P, 2P, 3P, 4P
Type Mini Breaking capacity 6ka
Model number SR Application Solar Power System
Length Shanghai,China
Products Description

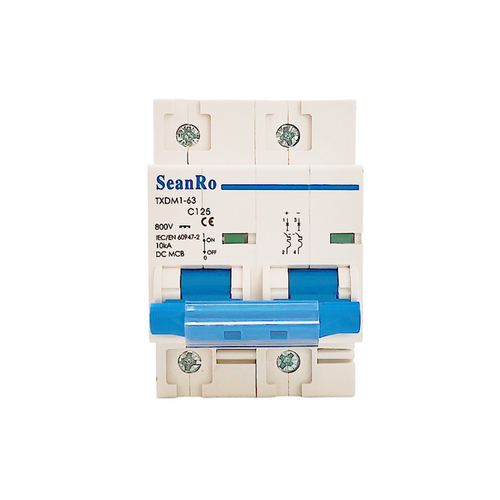

SeanRo DC MCB 125amp 100amp 1P 2P 3P 4P 1000V 80A 100A 125A DC Circuit Breaker for Solar PV System

2023111

Technical data
Rated current in (A)
80-125a
Pole
2p
Rated insulation voltage (V)
1000v
Impact wishstand voltage(V)
1000v
Rated breaking capacity 1cn(KA)
10ka
Mechanical life (times)
16000
Electrical life (times)
4000
Protection degree
IP20
Operating frequency
240 times/h (IN≤32A) 120 times/h (IN>32A)

FCNB1 PV Series Circuit Breaker
SRNB1-63
Ue Rated operating voltage (V DC)
DC 500V
DC 800V                         DC 1000V
DC 1200V
Rated Current In (A)
6-10-16-20-25-32-40-50-63
Rated insulation voltage Ui (V DC)
2P: 500,800V,1000v 4P:1000V
Rated Impact voltage Uimp (kV)
4
Ultimate breaking capacity lcu (kA)
10
10
10
10
Run breaking capacity lcs (%lcu)
75%
75%
75%
75%
Curve type
C
Trip type
Thermal-magnetic
MECHANICAL
20000
ELECTRIC
2500
Wiring capacity (mm²)
In≤32A,1∼25mm²,1≥40A,10∼35mm²
Ambient temperature (℃)
﹣20∼70
Altitude
≤2000
Relative humidity
≤95%
Pollution Level
3
Installation Environment
No obvious shock and vibration

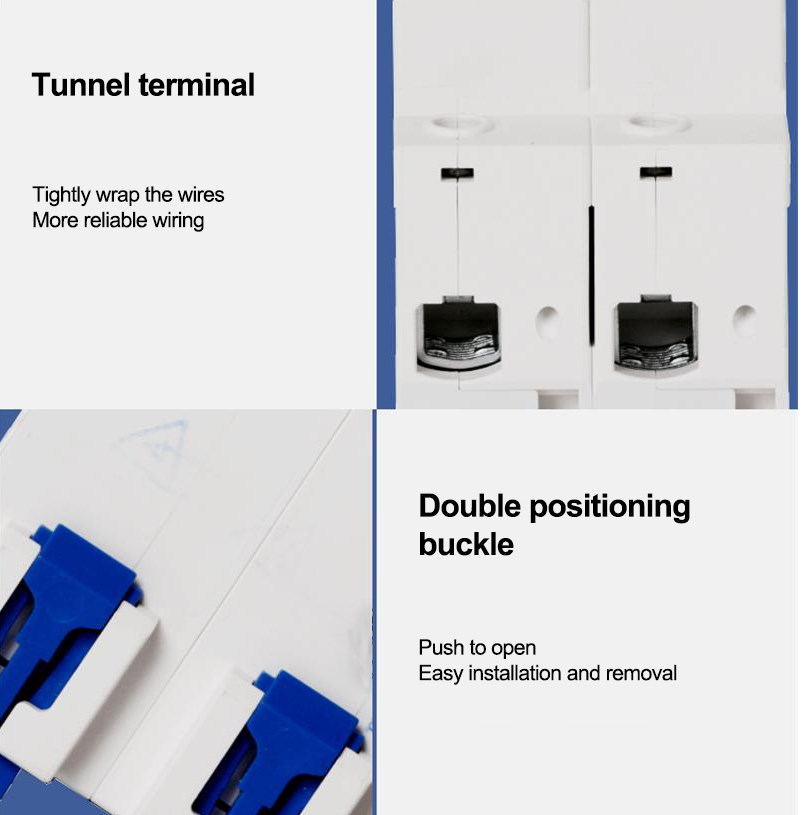

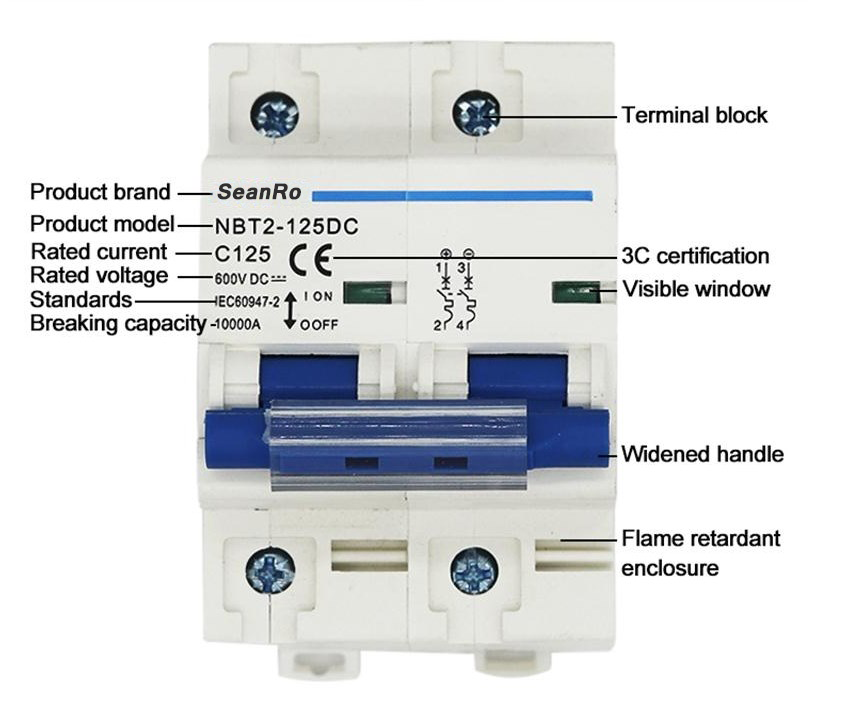

Details Images
