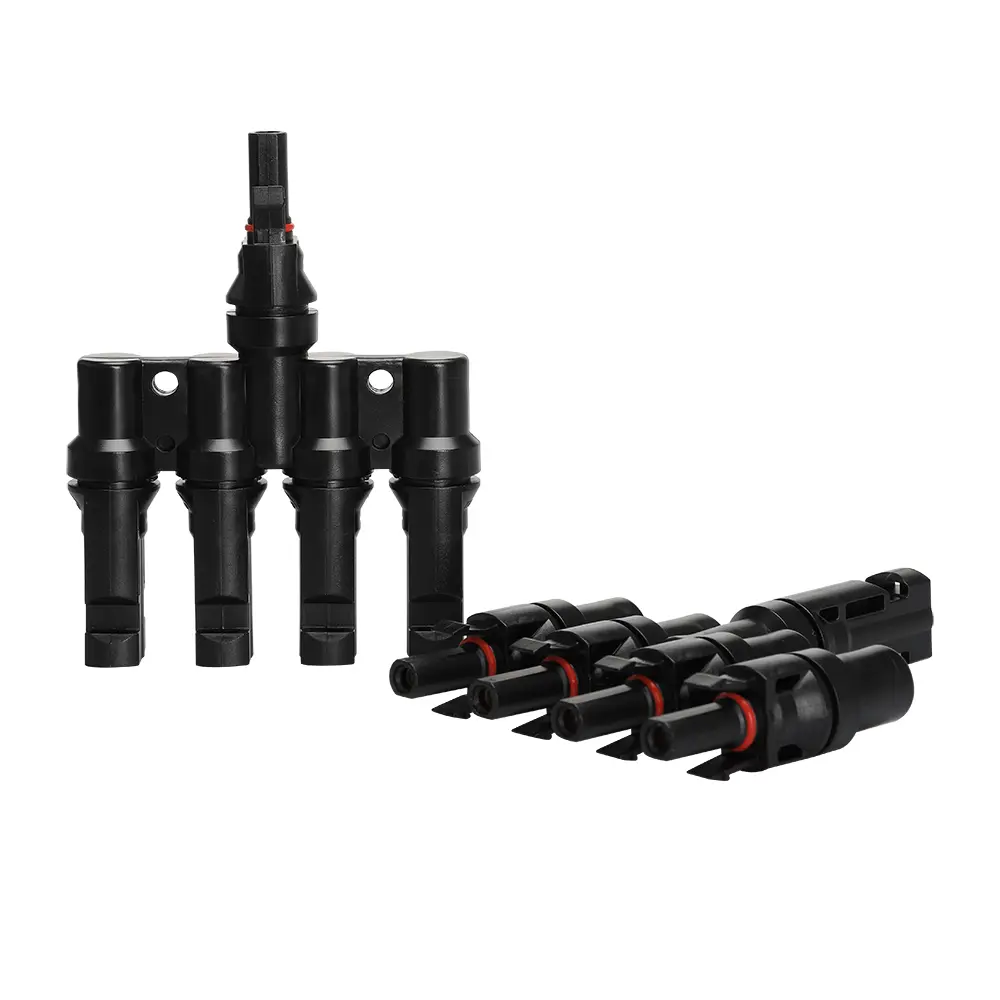

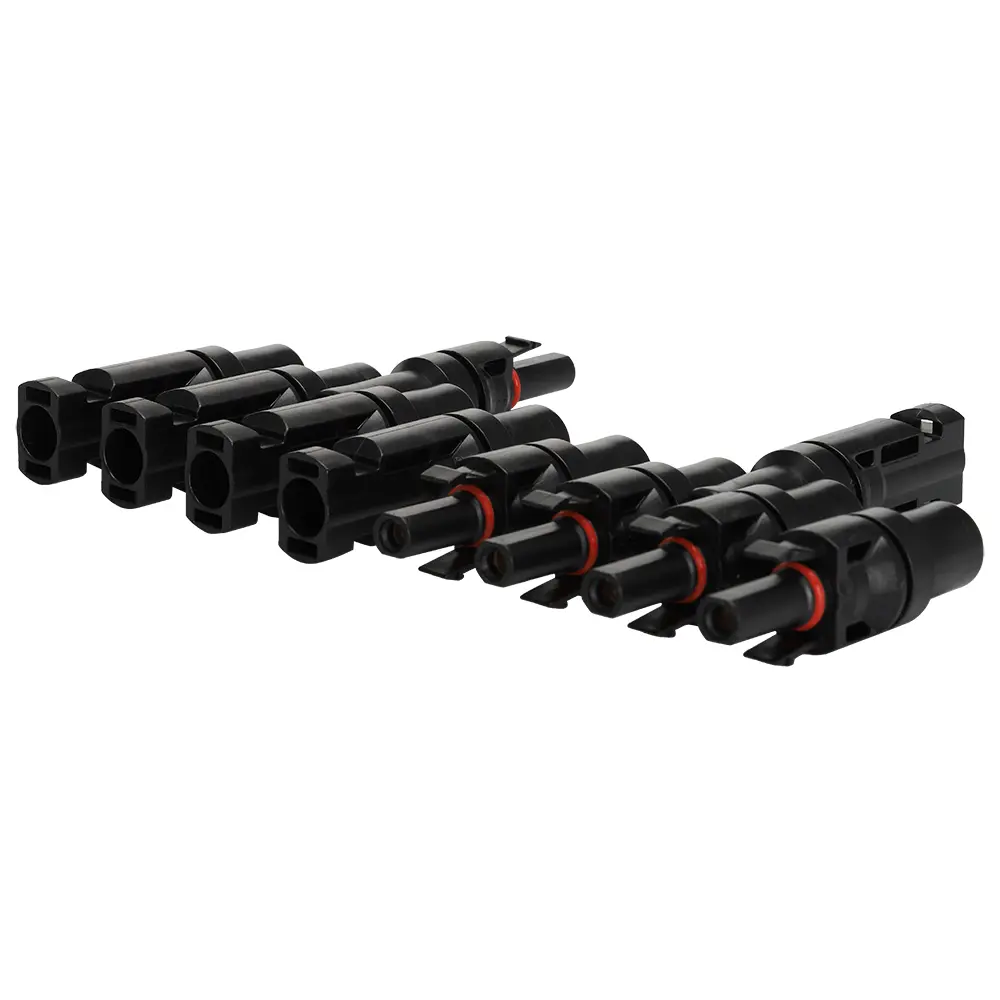

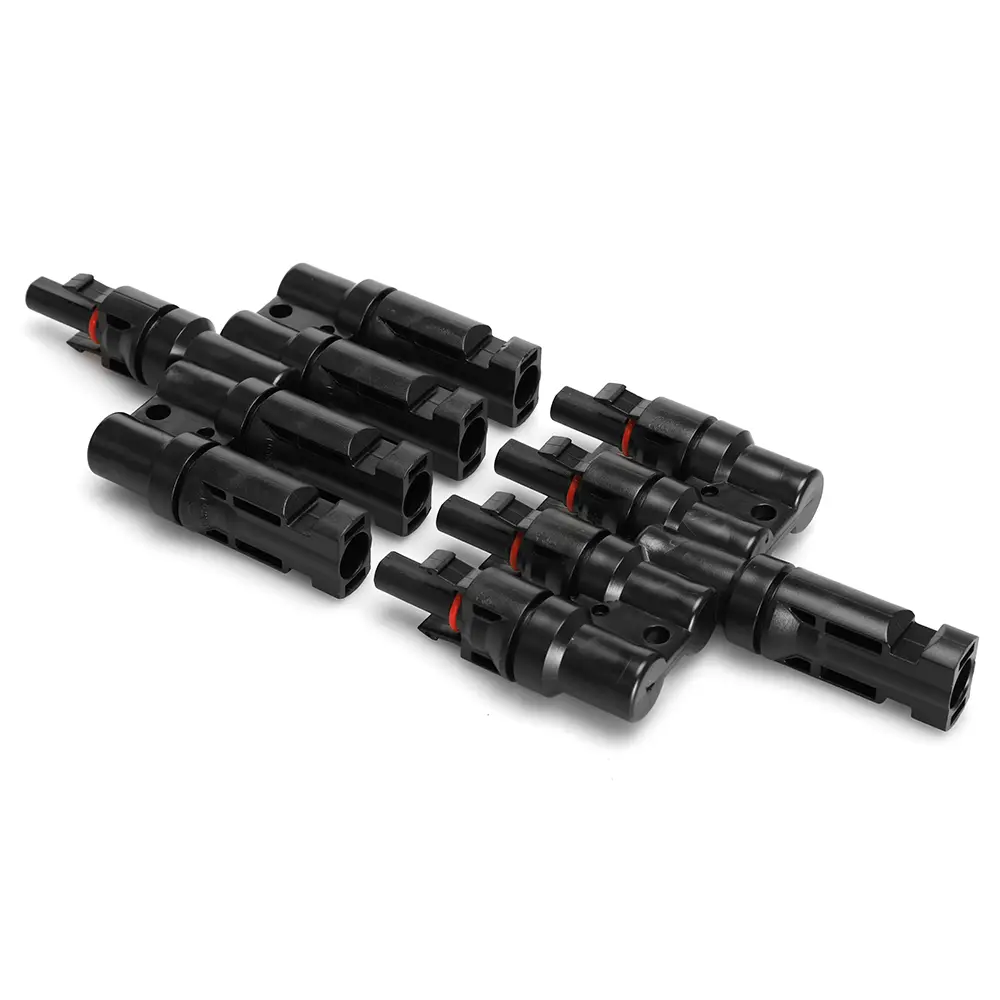

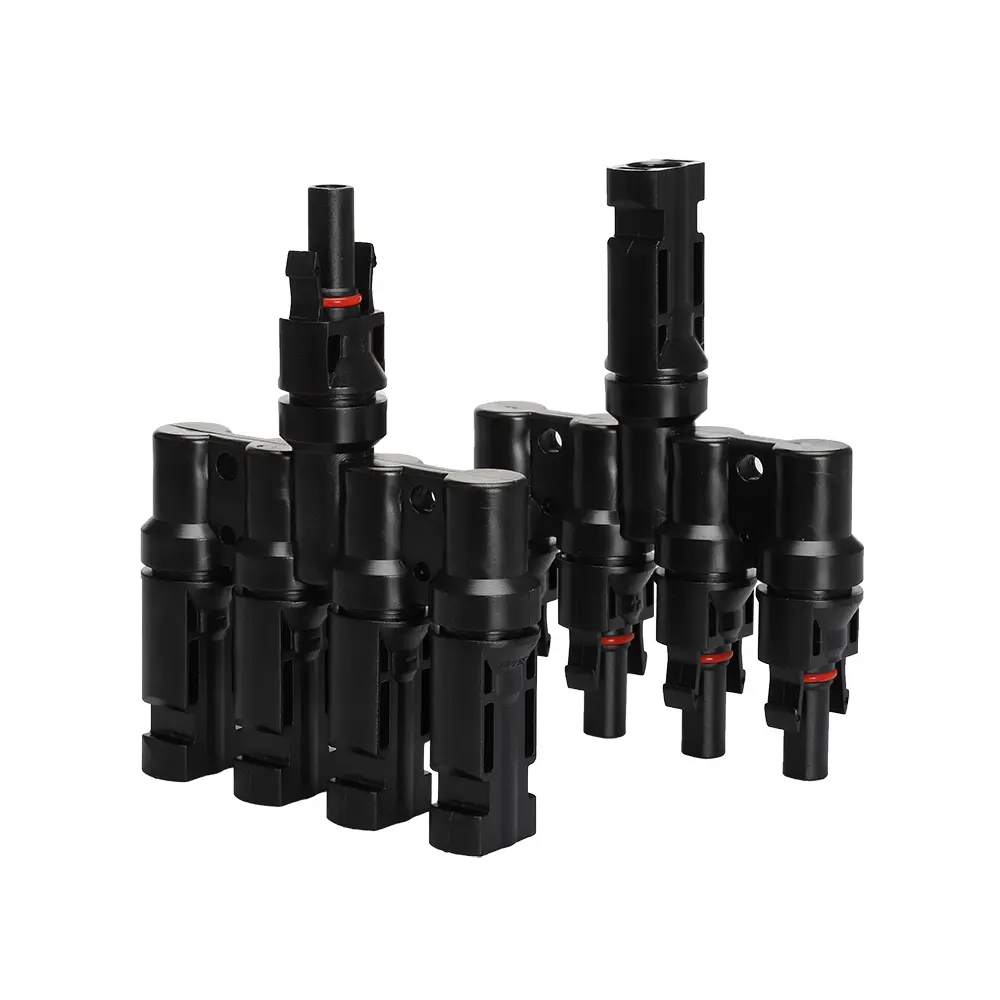

T BRANCH SOLAR CONNECTOR 4 IN 1 OUT

Detail
Product name T4-1 solar connector Rated current 30A
Rated voltage 1000VDC Insulation material PPO
Model number PV-LT4 Application Solar PV system
Test voltage 6KV(50HZ, 1min) Contact resistance 5mΩ Max
Approved CE/TUV/ISO900/ROSH Contact material Tinned copper
Connector system 2.5-10mm2 Waterproof rate IP67
Ambient temperature range -40℃....+80℃ Upper limiting temperature +105℃(IEC)
Locking system Snap-in Flame class UL-94-VO
Length Shanghai,China
Products Description
SeanRo Waterproof   t4 solar connector T type Cable Branch Solar Connectors 4way   High Efficient

               Data sheet
Product name
Waterproof T type t4 solar branch connector
Rated voltage
1000VDC/1500VDC
Rated current
30A(2.5-6mm2),60A(10-16mm2)
Test voltage
6000V(50Hz,1min)
Contact Material
Copper, Tin-plated
Insulation material
PPO
Installation
Silver plated copper
Frequency
-40°C~+85°C
Safe class
2
Flame class
UL94-V0
Suitable Cable
OD 4.5-8.5(2.5-6.0mm2)
Locking system
Snap in

Adance   Display
-----------------------------------------------------------------
Recommend Products
packing&shipping
Company Profile
Certifications

Consumer evaluation

FAQ
Q1. How can I place order?
A: You can contact us by email about your order details, or place order on line.

Q2. How can I pay you ?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.

Q3. what is the package of the cable ?
A: The package is usually wooden drum or steel wooden drum or coil.also according to customer's requirment.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where   they come from.
**If you have another questions,please feel free to contact us**
