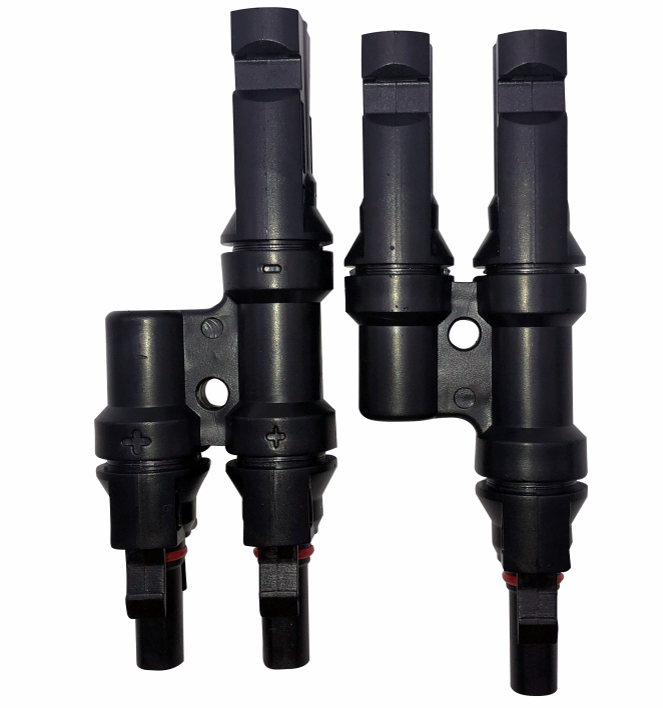

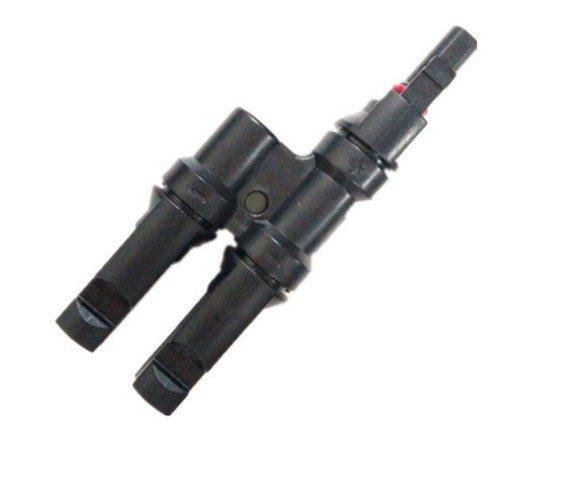

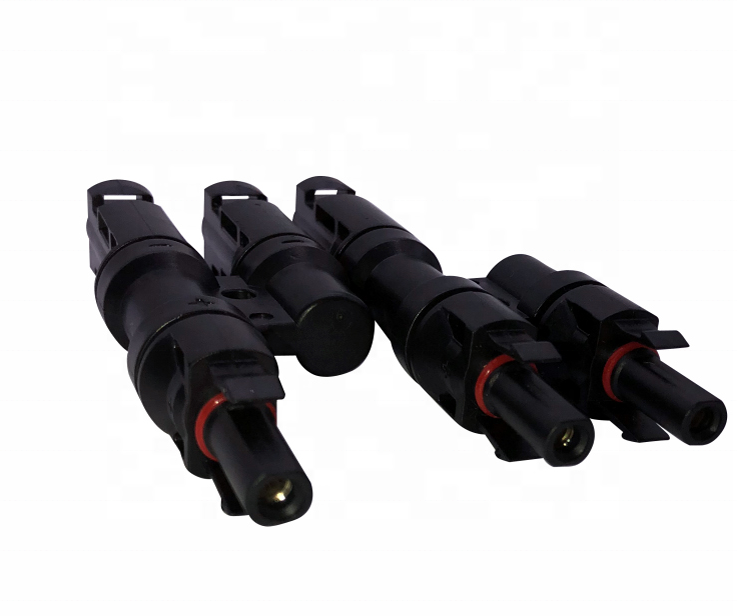

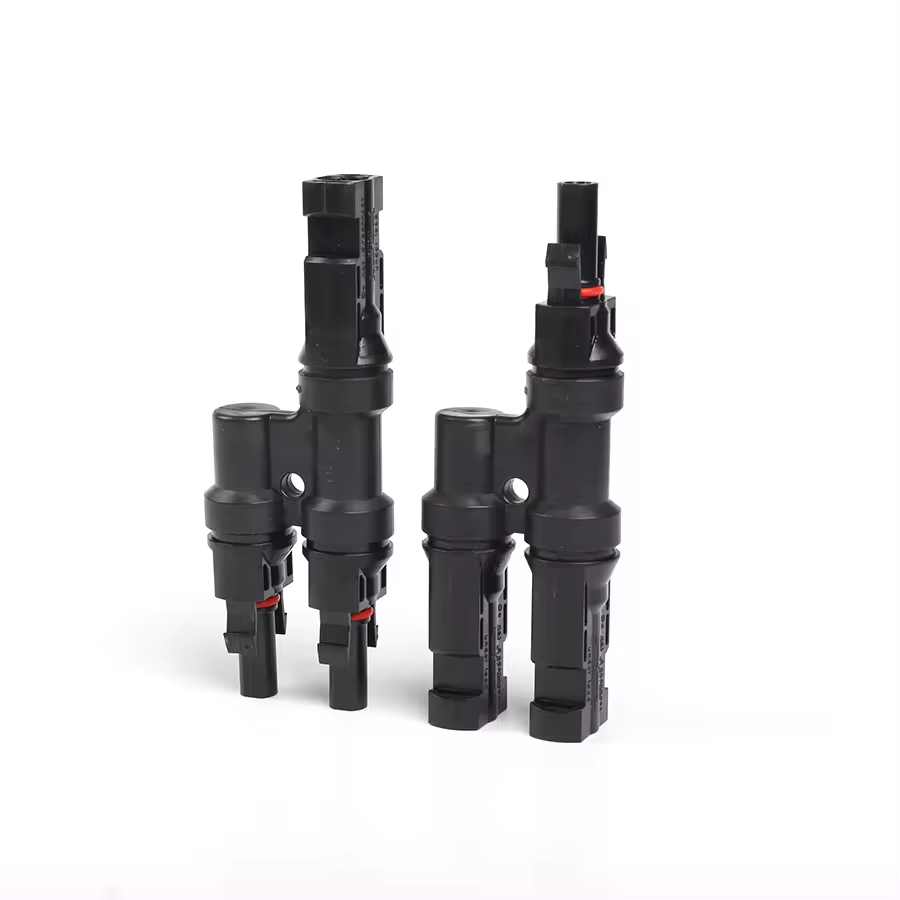

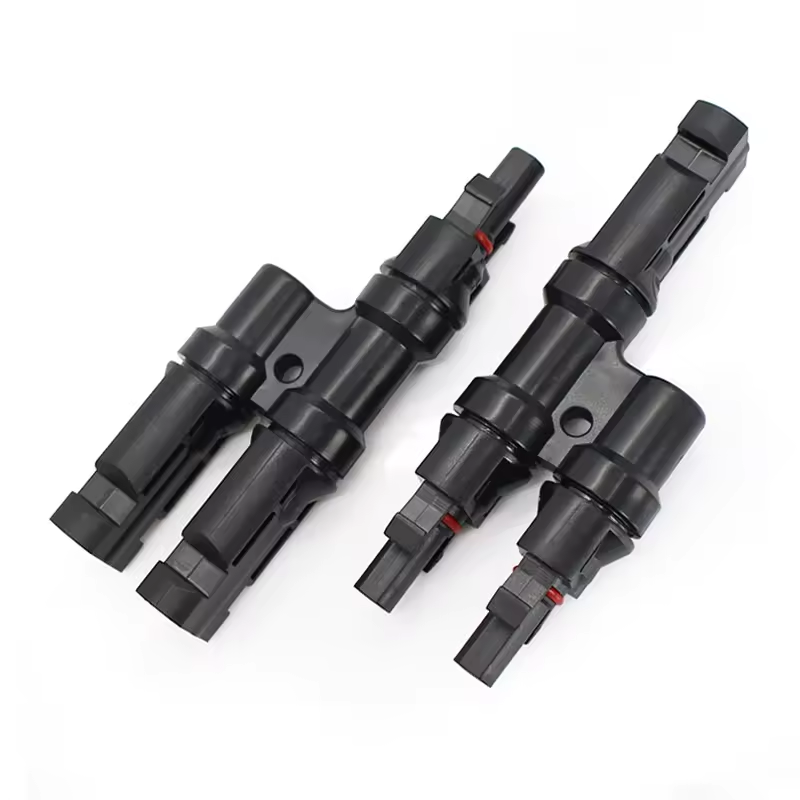

T BRANCH SOLAR CONNECTOR 2 IN 1 OUT

Consult immediately
Detail
Product name T2-1 solar connector Rated current 30A
Rated voltage 1000VDC Insulation material PPO
Working temperature -40℃~+85℃(IEC) Model number PV-LT2
Application Solar PV system Test voltage 6KV(50HZ, 1min)
Contact resistance 5mΩ Max Approved CE/TUV/ISO900/ROSH
Contact material Tinned copper Connector system 2.5-10mm2
Waterproof rate IP67 Ambient temperature range -40℃....+80℃
Upper limiting temperature +105℃(IEC) Locking system Snap-in
Flame class UL-94-VO Length Shanghai,China
Products Description
Seanro Waterproof Ip67 30a 1000v Dc 4mm2 T Branch Type 2ways 2 to 1 Pv Solar Cable Connector Male Female

CONSTRUCTION
Connector System
Φ4mm
Degree of Protection Mated/Unmated
IP67
Safety Class
Ⅱ
Contact Material
Copper,   Tin plated
Insulation Material
PPO
Flame Class
94-V0
Pin Number
2

TECHNICAL DATA
Rated Voltage
1000V DC(IEC)
Test voltage
6KV (50HZ, 1min)
Rated current
17A (1.5mm²)
22A (2.5mm²; 14AWG)
30A (4mm²; 6mm²; 12AWG; 10AWG)
Ambient temperature
-40°C upto +85 °C (IEC)
-40°C upto +75 °C
Upper limiting temperature
+105 °C (IEC)
Contact resistance of plug connectors
0.5mΩ
Why Choose Us
★ Offer You the Most Competitive Price ★

★    Our High Quality Products   Made of Selected Materials and Excellent Processing Equipment    ★

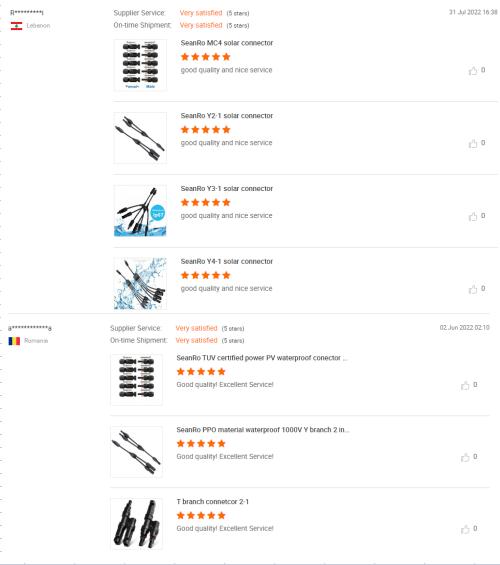

★ Feedback from Customers★
