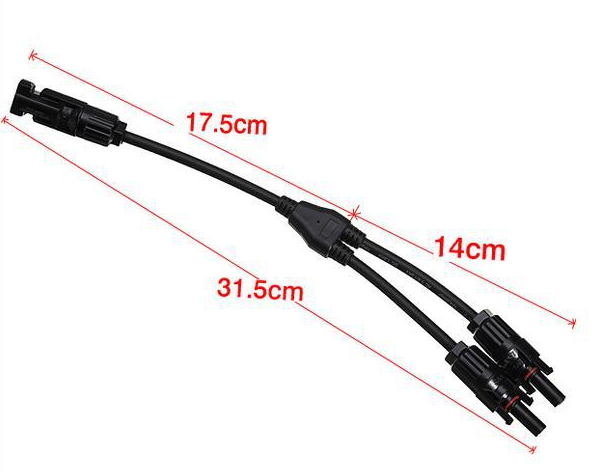

Y BRANCH SOLAR CONNECTOR 2 IN 1 OUT

Consult immediately
Detail
Product name Y2-1 solar connector Rated current 30A
Rated voltage 1000V Insulation material PC/PPO
Model number PV-LTY2 Application Solar PV system
Test voltage 6KV(50HZ, 1min) Contact resistance 5mΩ Max
Approved CE/TUV/ISO900/ROSH Contact material Tinned copper
Connector system 2.5-6mm2 Waterproof rate IP67
Ambient temperature range -40℃....+80℃ Upper limiting temperature +105℃(IEC)
Locking system Snap-in Flame class UL-94-VO
Length Shanghai,China
Products Description
SeanRo y branch solar connector PV 1000V 1500V waterproof solar connector   panel connector Solar cable parallel connector 2 to 1







2023116


CONSTRUCTION
connector system
Φ4mm
Degree of protection mated/unmated
IP67/IP2X
Safety class
Ⅱ
Contact material
Messing, verzinnt , copper alloy, tin plated
Insulation Material
PC/PA
Locking system
Snap-in
Flame Class
94-V0
Salt mist spray test degree of severity 5
IEC 60068-2-52
Pin Number
2

TECHNICAL DATA
Rated Voltage
1000V DC(IEC)
Test voltage
6KV (50HZ, 1min)
Rated current
17A (1.5mm²)
22A (2.5mm²; 14AWG)
30A (4mm²; 6mm²; 12AWG; 10AWG)
Ambient temperature
-40°C upto +90 °C (IEC)
-40°C upto +75 °C
Upper limiting temperature
+105 °C (IEC)
Contact resistance of plug connectors
0.5mΩ
