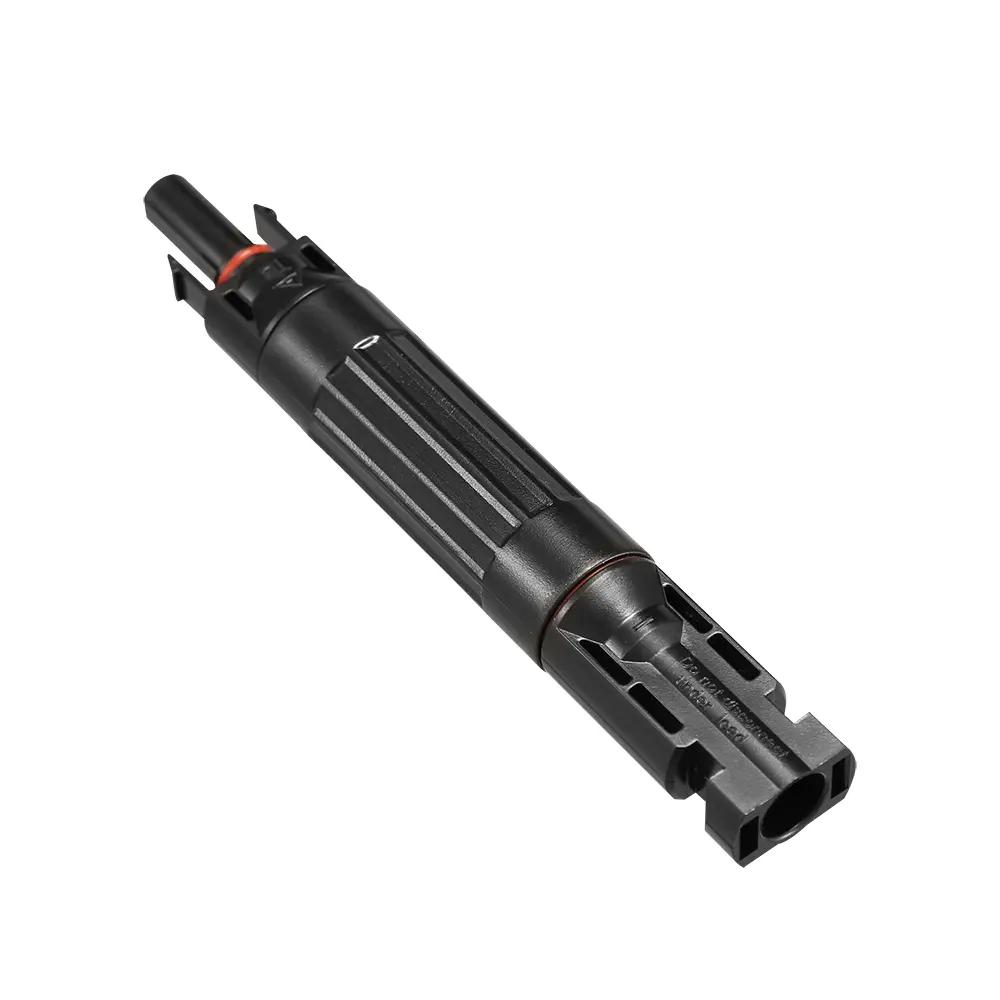

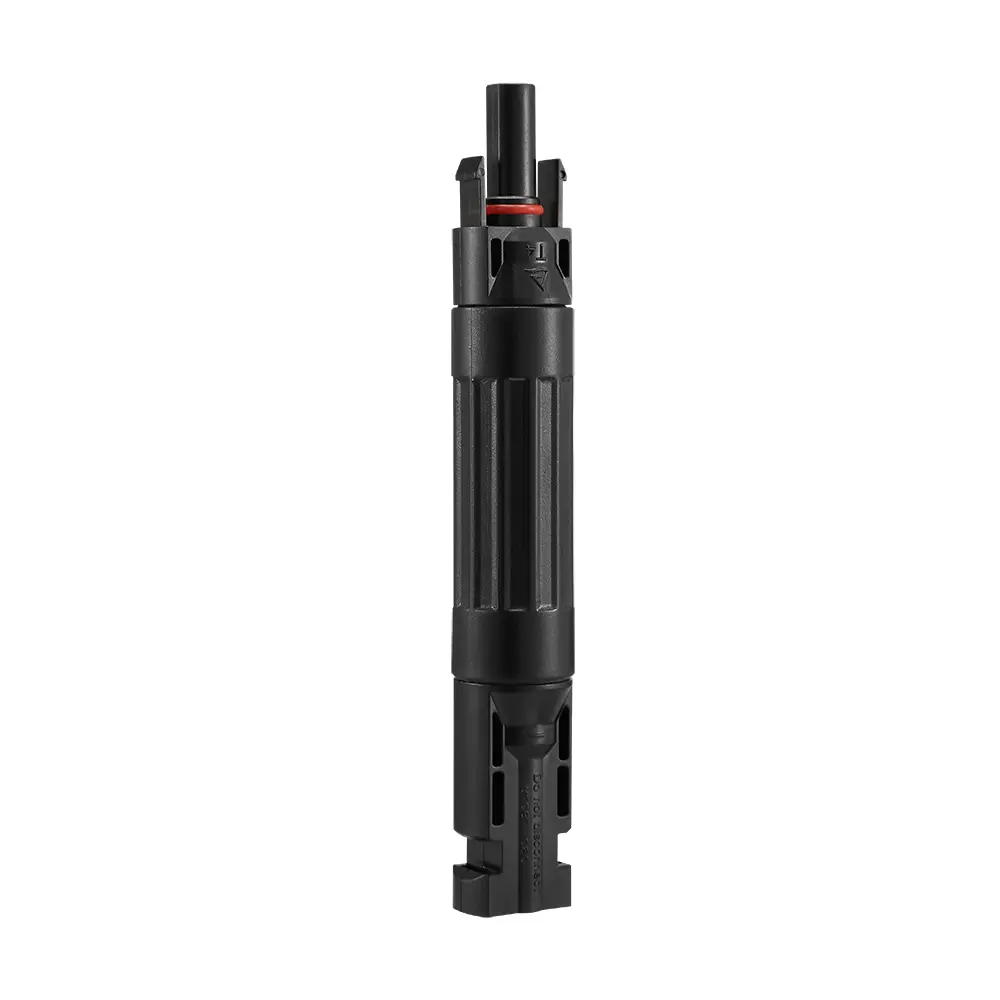

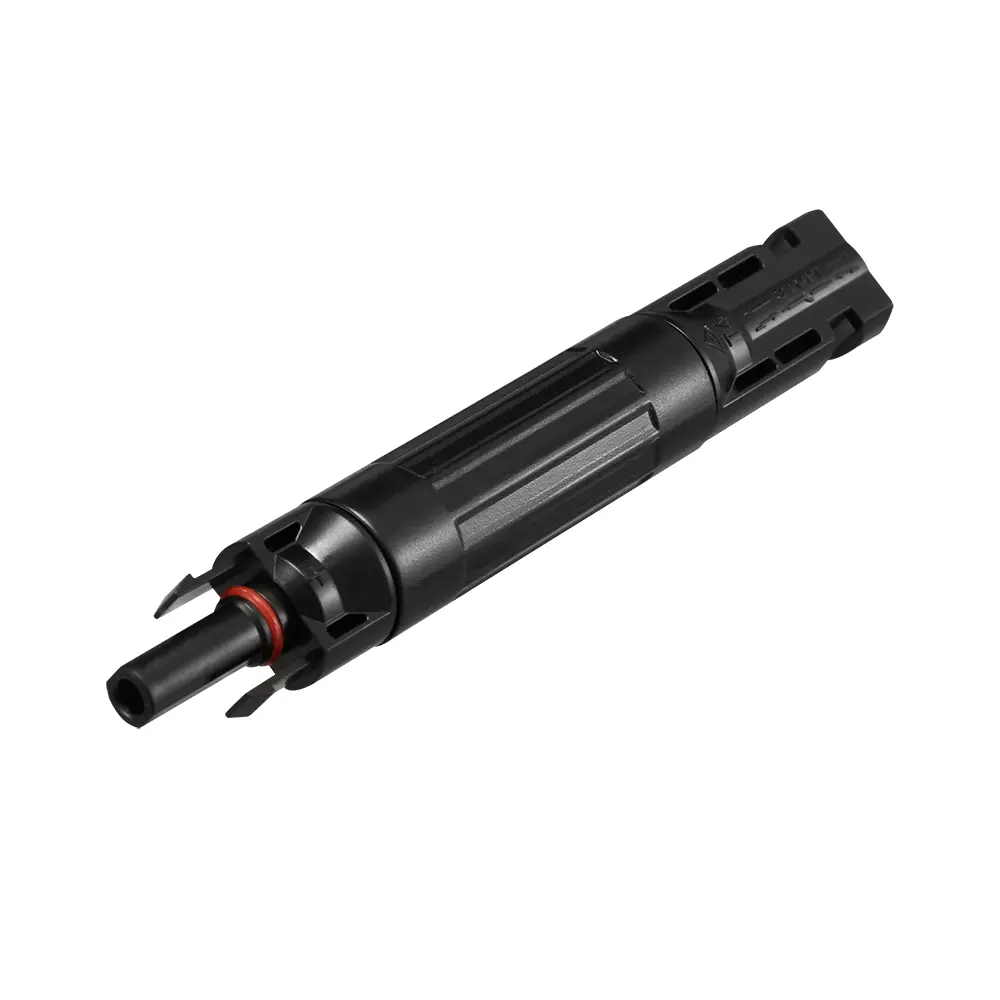

1000V MC4 Fuse Connector:1-32a

19821367050
Detail
Profduct name 1000V MC4 Fuse Connector Brand Name SeanRo
Place of Origin Shanghai,China Rated Current 1- 30A
Rated Voltage 1000V/ 1500V DC Insulation material PPO
Application Solar power system Contact resistance <5mΩ
Products Description
SeanRo 10*38mm DC 1000V 10A 15A 32A pv fuse link pv fuse connector solar


PRODUCT DESCRIPTION

Solar PV fuses are for protecting and isolating photovoltaic strings. These fuse links are capable of interrupting low overcurrent associated with faulted photovoltaic string arrays(reverse current,multi array fault.

2023112




TECHNICAL DATA
Insolution Material
PPO
Contact Material
Copper,Tinned
Fuse Size
10 x 38mm
Rated Voltage
1000V DC
Rated Current
1-30A
Test Voltage
8kV(50Hz,1min)
Contact Resisitance
<5mΩ
Working Temperature
-40℃~+90°C
Insertion/Withdrawal Force
Max.50N
Waterproof Protection
IP20
Installation Class
Ⅲ/Din Rail
APPLICATION
