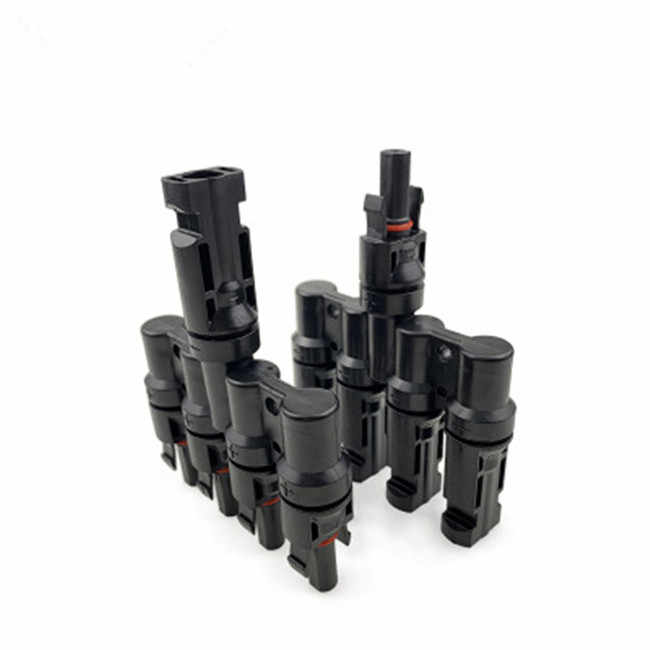

T BRANCH SOLAR CONNECTOR 3 IN 1 OUT

19821367050
Detail
Product name T3-1 solar connector Rated current 30A
Rated voltage 1000V Insulation material PPO
Model number PV-LT3 Application Solar PV system
Test voltage 6KV(50HZ, 1min) Contact resistance 5mΩ Max
Approved CE/TUV/ISO900/ROSH Contact material Tinned copper
Connector system 2.5-10mm2 Waterproof rate IP67
Ambient temperature range -40℃....+80℃ Upper limiting temperature +105℃(IEC)
Locking system Snap-in Flame class UL-94-VO
Length Shanghai,China
Products Description
SeanRo Ip67 Waterproof PV Cable Connector 4mm2 1000v Dc T Type Branch 3 to 1 Solar Panel Connector M-C-4 T Branch Connectors

CONSTRUCTION
Connector System
Φ4mm
Degree of Protection mated/unmated
IP67/IP2X
Safety Class
Ⅱ
Contact Material
copper alloy, tin plated
Insulation Material
PPO
Locking System
Snap-in
Flame Class
94-V0
Pin Number
3

TECHNICAL DATA
Rated Voltage
1000V DC(IEC)
Test voltage
6KV (50HZ, 1min)
Rated current
17A (1.5mm²)
22A (2.5mm²; 14AWG)
30A (4mm²; 6mm²; 12AWG; 10AWG)
Ambient temperature
-40°C upto +85 °C (IEC)
-40°C upto +75 °C
Upper limiting temperature
+105 °C (IEC)
Contact resistance of plug connectors
0.5mΩ
